25mm Chamfered Wine Cabinet Door with 105° Opening
Compare recessed edge pull and light glass insert appearance.
View this door design
A 25mm high-square chamfered aluminum cabinet door with a wood-look panel and long recessed pull, designated for 105-degree opening kitchen applications.
ESM / SELECTED DOOR
This 25mm high-square chamfered frame pairs a wood-look panel appearance with a long recessed pull. The design is intended for kitchen and dining display cabinets.
ESM supplies custom door units for cabinet manufacturers, furniture brands and project buyers. Start with the pictured configuration, then specify the required sizes, finish, insert and cabinet fit.
Get a Quote for This Door

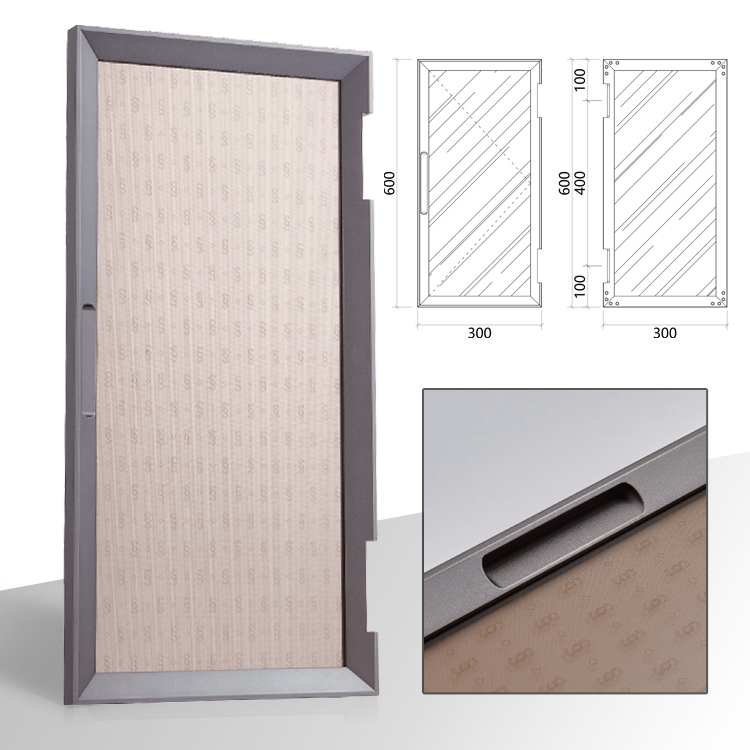

Door sample for this model
| Frame reference | 25mm high-square chamfered frame |
|---|---|
| Shown insert | Wood-look panel appearance |
| Grip / handle | Long recessed pull |
| Application | kitchen and dining display cabinets |
| Order dimensions | Finished door width × height and quantity for each size; confirm against the selected system |
| Supply scope | Door units; insert, hardware and packing itemized in the quotation |
01 / DETAIL

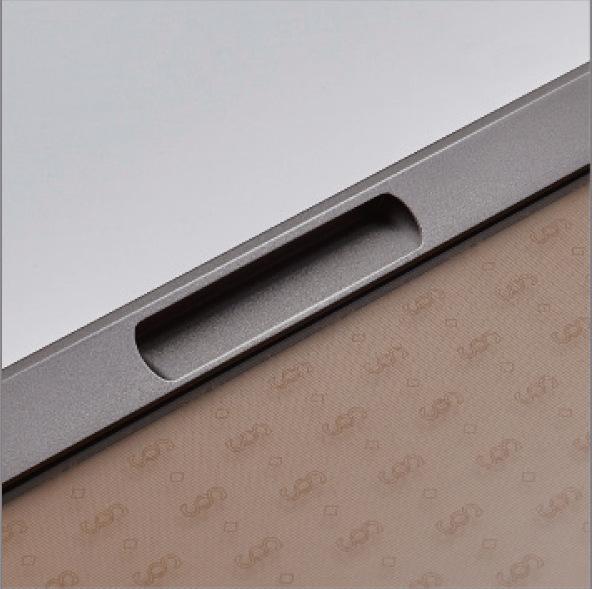

Review the visible border and its finish together with the full door sample.
Model-specific catalogue detail; final interfaces follow the approved drawing.
Coordinate the chamfered border with the wood-look front and confirm the intended 105-degree opening layout around kitchen tall units.
Catalogue reference for the selected design. Frame-series names do not replace a section drawing; confirm the finish with a physical sample.
02 / HARDWARE

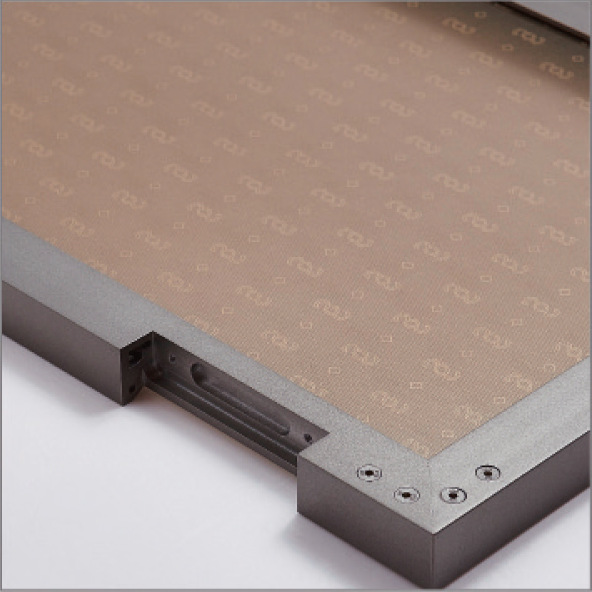

Door-side mounting detail from this model. Match the specified hardware to this interface.
Review the opening-angle designation in this model name against the selected hinge and installation layout. Check the door path near side panels, handles and nearby worktops before approving the cabinet machining.
The achievable movement and any hold-open or free-stop function depend on the chosen hardware, door size, weight and installation. Confirm these requirements for the order; a hardware photograph does not establish a load rating or an opening-angle guarantee.
03 / SELECTION
The illustrated front has a wood-look panel appearance. Confirm the actual panel material, pattern scale, backing and edge treatment with the frame finish. Keep the long recessed pull aligned across the cabinet elevation.
| Frame and insert | 25mm high-square chamfered frame / Wood-look panel appearance |
|---|---|
| Opening detail | Long recessed pull |
| Sample review | Compare the actual finish, surface and edge treatment before approving a batch |
04 / SAMPLE FINISH
Inspect the corner line and metallic finish on an actual sample before confirming a production finish.
Review how the selected insert seats in its frame. The final section and assembly details must match the ordered system.
ESM sample photographs, edited for presentation. These samples show other frame sections and are not technical drawings of this model.
05 / PRODUCTION
Catalogue application illustration. Cabinet interiors provide context; this enquiry concerns the door units.
Coordinate the chamfered border with the wood-look front and confirm the intended 105-degree opening layout around kitchen tall units.
List door sizes and quantities by position so handles, insert patterns and neighbouring fronts can be reviewed as one order.
The existing ESM collection video shows aluminum sections, corner finishes and sample displays across the wider range.
Collection video, not a model-specific opening or load test.
Agree the finish sample, door schedule, hardware scope and protective packing before production. The workshop photographs show general ESM door batches; finishes and configurations vary.
06 / QUOTE
Tell us about your kitchen and dining display cabinets project and reference this model. Approximate sizes, quantities, destination and contact details are enough to start the conversation. Drawings can follow by email or WhatsApp.
| Design reference | 25mm Chamfered Panel Kitchen Cabinet Door with 105° Opening |
|---|---|
| Door schedule | Width × height, quantity and opening side for each position |
| Appearance | Wood-look panel appearance; Long recessed pull; list requested changes |
| Cabinet fit | Mounting surfaces, overlay / inset and clearance requirements |
| Supply and delivery | Included insert and hardware, packing, destination and project timing |
For this 25mm high-square chamfered frame, provide the door width and height, handing, cabinet mounting surfaces and nearby obstructions. Identify the required movement so the selected hardware and clearance can be reviewed together.
Send the required finished dimensions and quantities. The frame, insert and hardware must be reviewed together for each size; catalogue sample dimensions are not a maximum-size or load rating.
Ask for the frame finish, insert, hardware, machining and packing to be listed separately where applicable. Sample arrangements, minimum order and production timing are confirmed for the selected configuration.
