A light-champagne hidden-frame glass cabinet door with a long edge pull and 270-degree free-stop single-pivot designation for wine and kitchen displays.
ESM / SELECTED DOOR
This hidden-frame free-stop single-pivot series pairs a light glass insert appearance with a long recessed edge pull. The design is intended for wine and collection displays.
ESM supplies custom door units for cabinet manufacturers, furniture brands and project buyers. Start with the pictured configuration, then specify the required sizes, finish, insert and cabinet fit.
Get a Quote for This Door

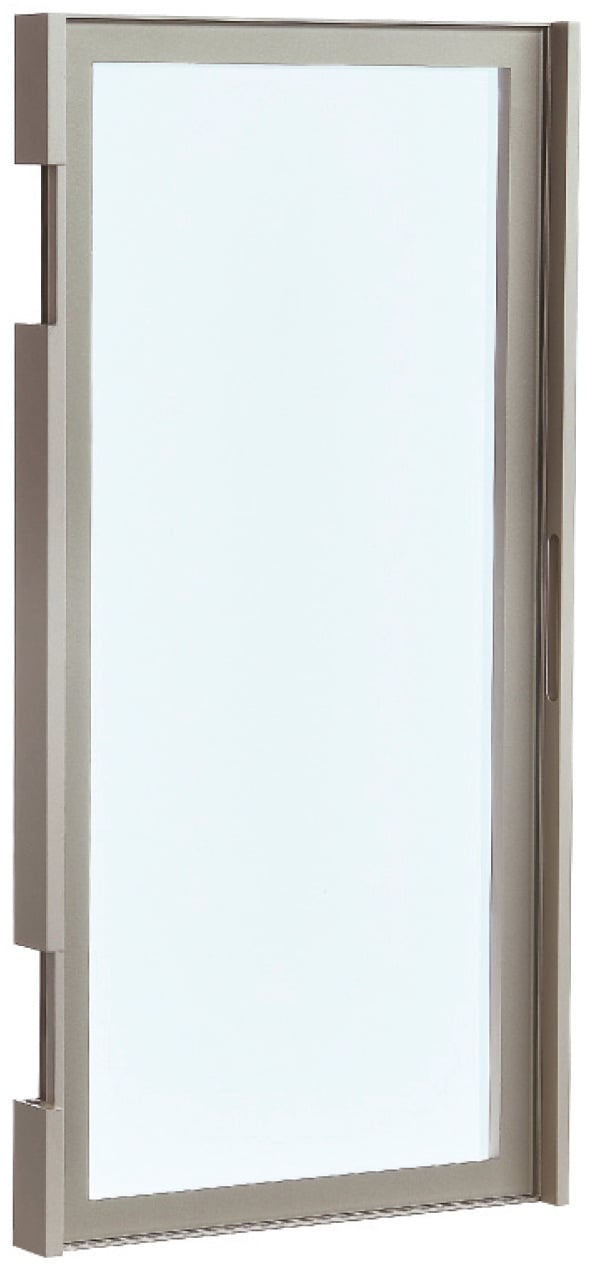

Door sample for this model
| Frame reference | Hidden-frame free-stop single-pivot series |
|---|---|
| Shown insert | Light glass insert appearance |
| Grip / handle | Long recessed edge pull |
| Application | wine and collection displays |
| Order dimensions | Finished door width × height and quantity for each size; confirm against the selected system |
| Supply scope | Door units; insert, hardware and packing itemized in the quotation |

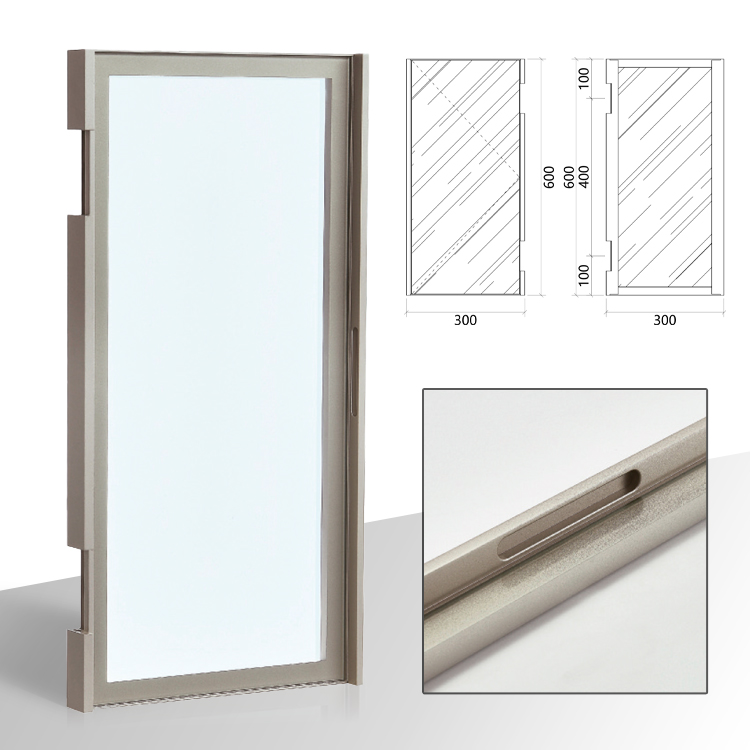

01 / DETAIL

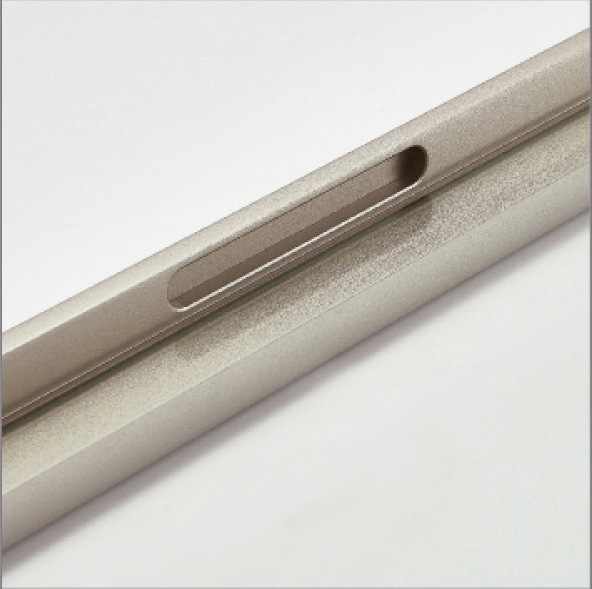

Review the visible border and its finish together with the full door sample.
Model-specific catalogue detail; final interfaces follow the approved drawing.
For a wine display, compare the wide-opening concept with adjacent worktops and shelves; the cabinet layout must allow the intended door movement.
Catalogue reference for the selected design. Frame-series names do not replace a section drawing; confirm the finish with a physical sample.
02 / HARDWARE

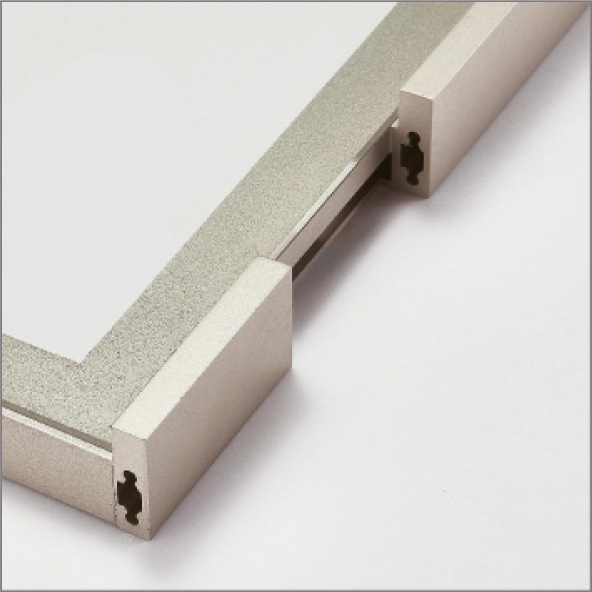

Door-side mounting detail from this model. Match the specified hardware to this interface.
This design belongs to the 270-degree free-stop single-pivot series. Review the specified hardware and its movement with the complete door assembly, allowing clearance for adjacent fronts, shelves and worktops.
The achievable movement and any hold-open or free-stop function depend on the chosen hardware, door size, weight and installation. Confirm these requirements for the order; a hardware photograph does not establish a load rating or an opening-angle guarantee.
03 / SELECTION
Start with the light glass insert appearance shown in this design. Compare the tone, visibility and texture under the planned cabinet lighting, then confirm the glass construction and its fit with the frame.
Compare tinted, reeded, ripple, frosted, wired and laminated sample styles for your cabinet project. Start with the character of the pictured door, then discuss the combination you prefer.
Physical samples from the ESM glass collection. Confirm the selected glass specification and frame compatibility for your order.
04 / SAMPLE FINISH
Inspect the corner line and metallic finish on an actual sample before confirming a production finish.
Review how the selected insert seats in its frame. The final section and assembly details must match the ordered system.
ESM sample photographs, edited for presentation. These samples show other frame sections and are not technical drawings of this model.
05 / PRODUCTION
Catalogue application illustration. Cabinet interiors provide context; this enquiry concerns the door units.
For a wine display, compare the wide-opening concept with adjacent worktops and shelves; the cabinet layout must allow the intended door movement.
List door sizes and quantities by position so handles, insert patterns and neighbouring fronts can be reviewed as one order.
The existing ESM collection video shows aluminum sections, corner finishes and sample displays across the wider range.
Collection video, not a model-specific opening or load test.
Agree the finish sample, door schedule, hardware scope and protective packing before production. The workshop photographs show general ESM door batches; finishes and configurations vary.
06 / QUOTE
Tell us about your wine and collection displays project and reference this model. Approximate sizes, quantities, destination and contact details are enough to start the conversation. Drawings can follow by email or WhatsApp.
| Design reference | 270° Free-Stop Hidden-Frame Wine Cabinet Glass Door |
|---|---|
| Door schedule | Width × height, quantity and opening side for each position |
| Appearance | Light glass insert appearance; Long recessed edge pull; list requested changes |
| Cabinet fit | Mounting surfaces, overlay / inset and clearance requirements |
| Supply and delivery | Included insert and hardware, packing, destination and project timing |
For this hidden-frame free-stop single-pivot series, provide the door width and height, handing, cabinet mounting surfaces and nearby obstructions. Identify the required movement so the selected hardware and clearance can be reviewed together.
Send the required finished dimensions and quantities. The frame, insert and hardware must be reviewed together for each size; catalogue sample dimensions are not a maximum-size or load rating.
Ask for the frame finish, insert, hardware, machining and packing to be listed separately where applicable. Sample arrangements, minimum order and production timing are confirmed for the selected configuration.
07 / RELATED

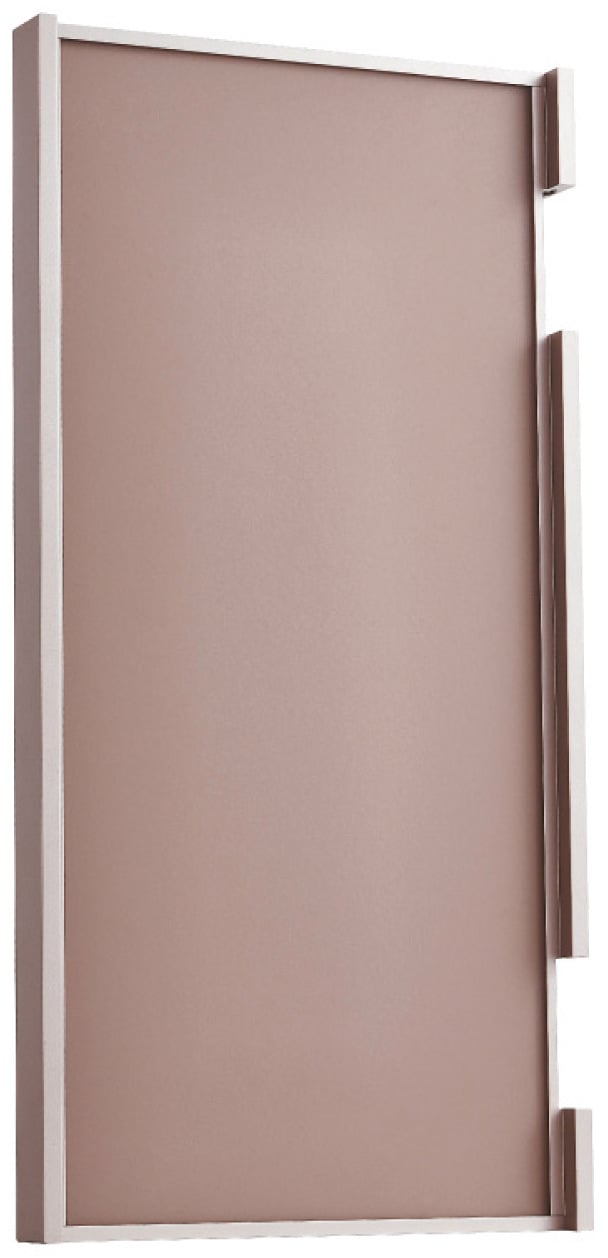

Compare integrated edge pull and rose-toned panel appearance.
View this door design

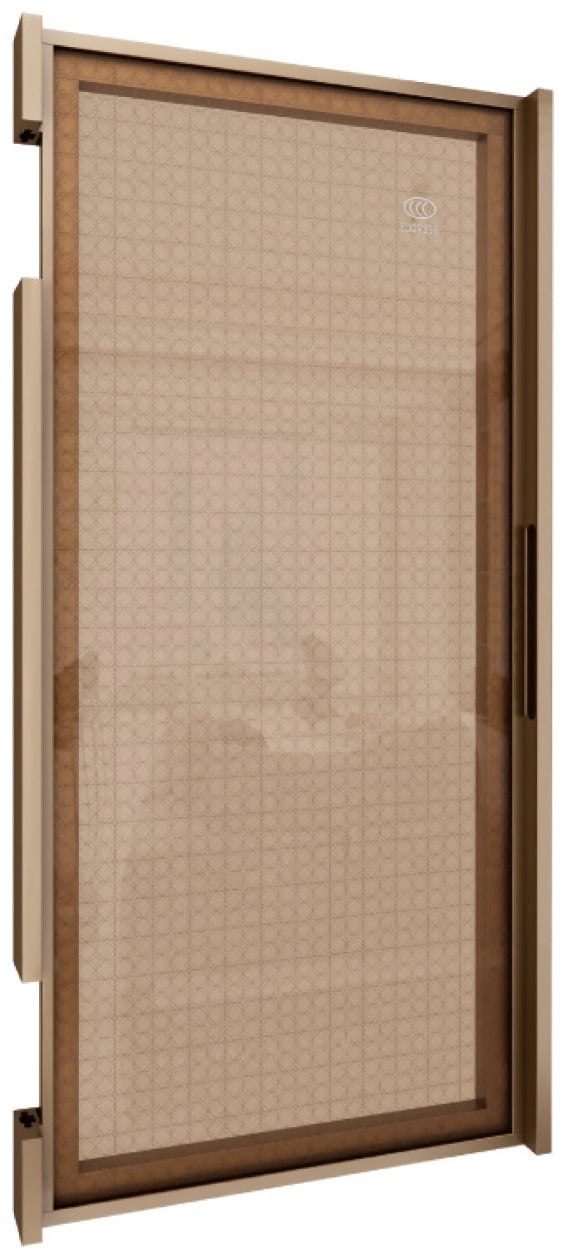

Compare flat integrated pull tab and warm textured glass appearance.
