48mm Integrated-Pull Wardrobe Door with 35mm Cup Hinge
Compare integrated edge pull and light glass insert appearance.
View this door design
A dark aluminum glass closet door configured for a 35mm cup-hinge system, with a fine textured appearance for fitted wardrobes and corner dressing rooms.
ESM / SELECTED DOOR
This aluminum frame for a 35mm cup-hinge system pairs a fine textured glass appearance with a frame-integrated opening detail. The design is intended for wardrobes and dressing-room cabinetry.
ESM supplies custom door units for cabinet manufacturers, furniture brands and project buyers. Start with the pictured configuration, then specify the required sizes, finish, insert and cabinet fit.
Get a Quote for This Door

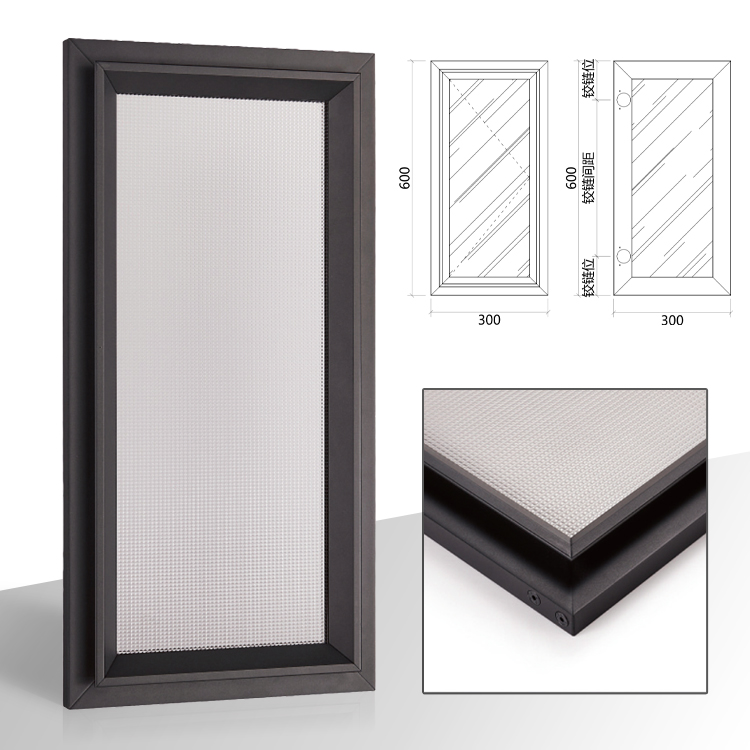

Door sample for this model
| Frame reference | Aluminum frame for a 35mm cup-hinge system |
|---|---|
| Shown insert | Fine textured glass appearance |
| Grip / handle | Frame-integrated opening detail |
| Application | wardrobes and dressing-room cabinetry |
| Order dimensions | Finished door width × height and quantity for each size; confirm against the selected system |
| Supply scope | Door units; insert, hardware and packing itemized in the quotation |

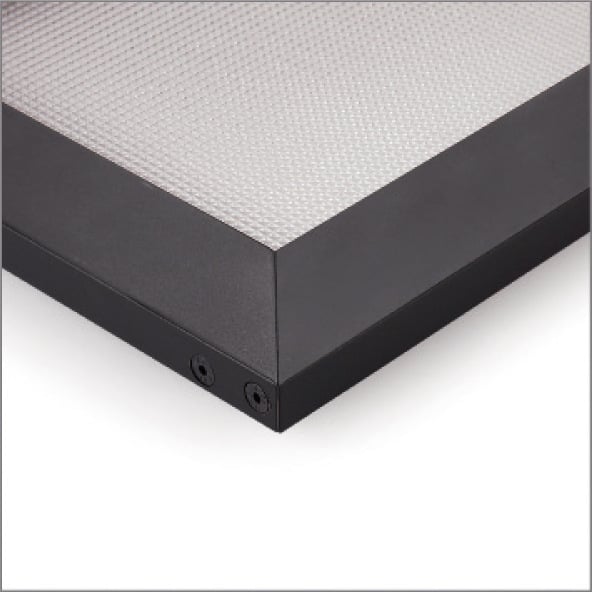

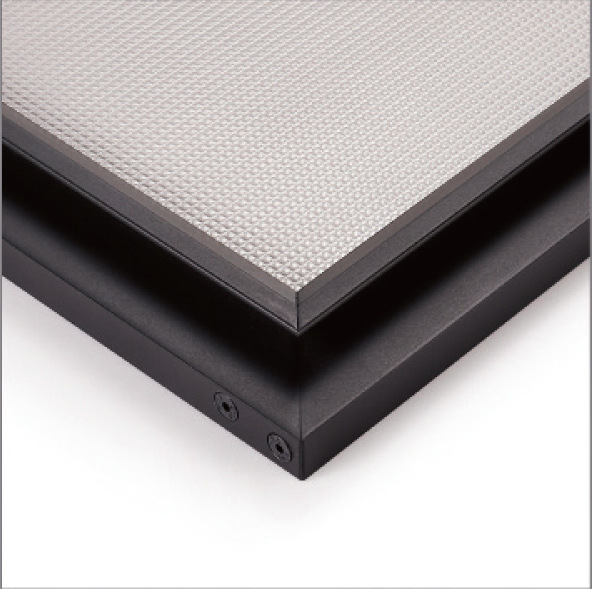

01 / DETAIL
Review the visible border and its finish together with the full door sample.
Model-specific catalogue detail; final interfaces follow the approved drawing.
Start with the intended cup-hinge arrangement and cabinet construction, then confirm the glass and frame finish for the closet front.
Catalogue reference for the selected design. Frame-series names do not replace a section drawing; confirm the finish with a physical sample.
02 / HARDWARE
35mm cup-hinge installation on the 48mm integrated-pull frame. Confirm boring and mounting details for the selected model.
Check the cup depth, boring centres, mounting plate and overlay or inset position against the actual frame. The 35mm designation alone does not make every cup hinge compatible.
| Door-side preparation | Cup depth and boring centres matched to this frame |
|---|---|
| Cabinet-side preparation | Mounting plate and overlay / inset arrangement |
| Included hardware | Hinge model and quantity identified in the quotation |
03 / SELECTION
Start with the fine textured glass appearance shown in this design. Compare the tone, visibility and texture under the planned cabinet lighting, then confirm the glass construction and its fit with the frame.
Compare tinted, reeded, ripple, frosted, wired and laminated sample styles for your cabinet project. Start with the character of the pictured door, then discuss the combination you prefer.
Physical samples from the ESM glass collection. Confirm the selected glass specification and frame compatibility for your order.
04 / SAMPLE FINISH
Inspect the corner line and metallic finish on an actual sample before confirming a production finish.
Review how the selected insert seats in its frame. The final section and assembly details must match the ordered system.
ESM sample photographs, edited for presentation. These samples show other frame sections and are not technical drawings of this model.
05 / PRODUCTION
Catalogue application illustration. Cabinet interiors provide context; this enquiry concerns the door units.
Start with the intended cup-hinge arrangement and cabinet construction, then confirm the glass and frame finish for the closet front.
List door sizes and quantities by position so handles, insert patterns and neighbouring fronts can be reviewed as one order.
The existing ESM collection video shows aluminum sections, corner finishes and sample displays across the wider range.
Collection video, not a model-specific opening or load test.
Agree the finish sample, door schedule, hardware scope and protective packing before production. The workshop photographs show general ESM door batches; finishes and configurations vary.
06 / QUOTE
Tell us about your wardrobes and dressing-room cabinetry project and reference this model. Approximate sizes, quantities, destination and contact details are enough to start the conversation. Drawings can follow by email or WhatsApp.
| Design reference | 35mm Cup-Hinge Aluminum Glass Closet Door |
|---|---|
| Door schedule | Width × height, quantity and opening side for each position |
| Appearance | Fine textured glass appearance; Frame-integrated opening detail; list requested changes |
| Cabinet fit | Mounting surfaces, overlay / inset and clearance requirements |
| Supply and delivery | Included insert and hardware, packing, destination and project timing |
Send the hinge model, cup depth, boring centres, mounting plate and required overlay or inset position. These details must match the frame; the cup diameter alone is insufficient.
Send the required finished dimensions and quantities. The frame, insert and hardware must be reviewed together for each size; catalogue sample dimensions are not a maximum-size or load rating.
Ask for the frame finish, insert, hardware, machining and packing to be listed separately where applicable. Sample arrangements, minimum order and production timing are confirmed for the selected configuration.
