Wall-Mounted Acrylic Wine Display System
Designed for private residences, home bars, entertainment spaces and hospitality interiors, this made-to-measure system presents wine bottles horizontally in a light architectural grid. The transparent supports become almost invisible when unlit and form a luminous display pattern when the integrated LED system is switched on.

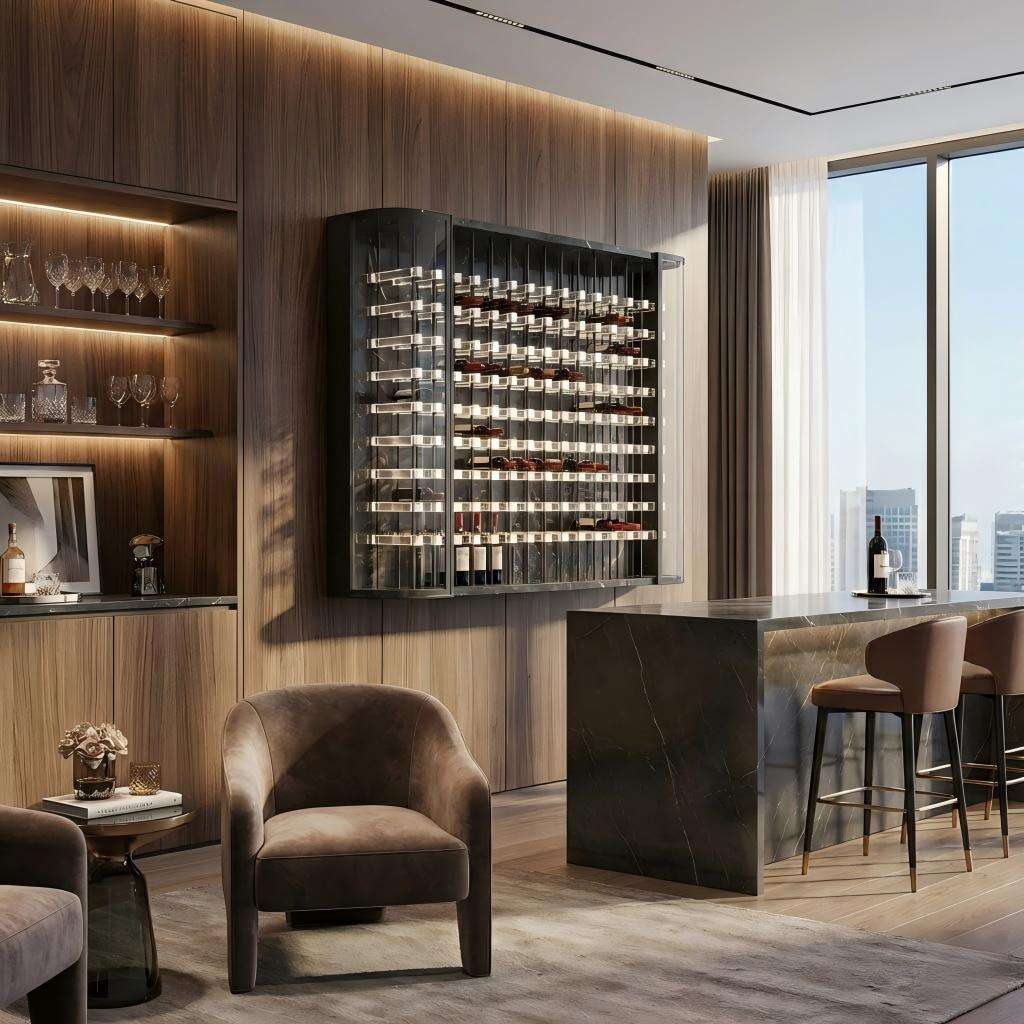

Natural Light

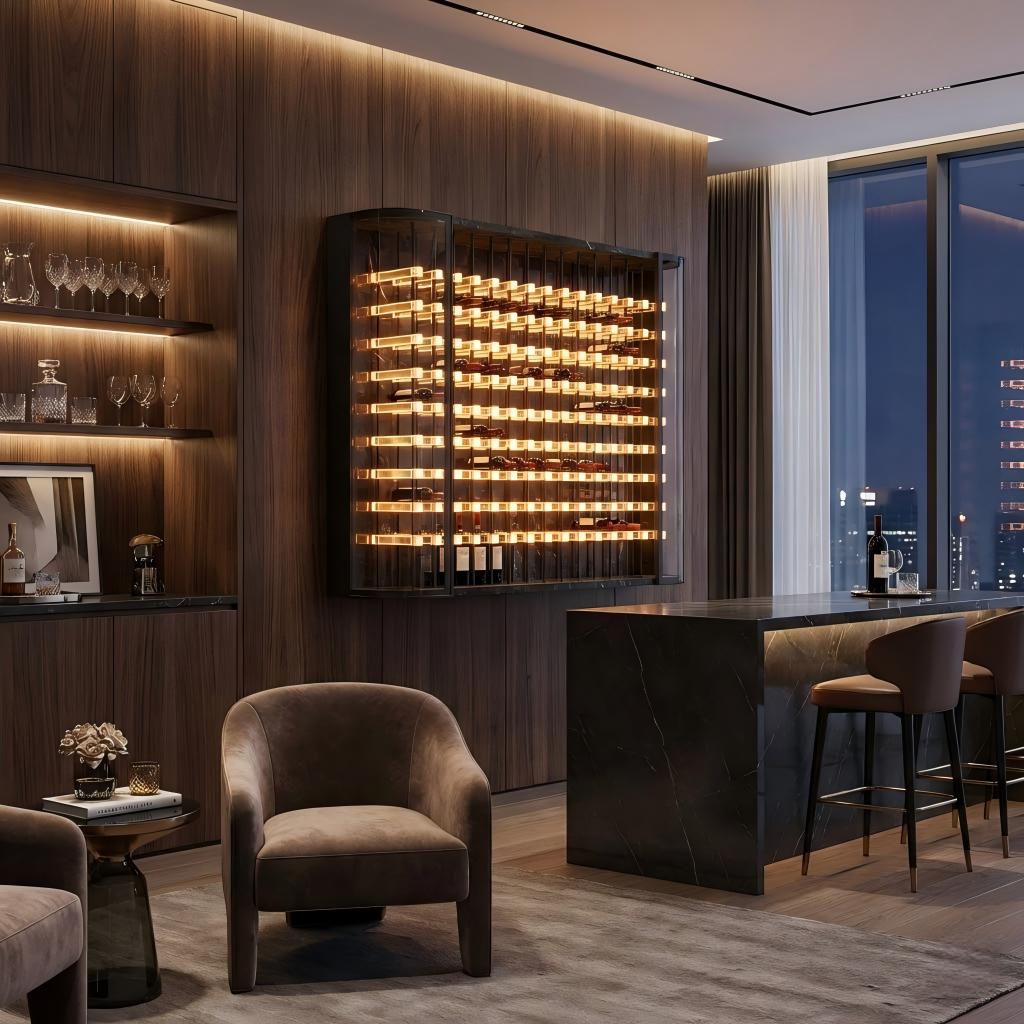

LED Illuminated
Product Identity

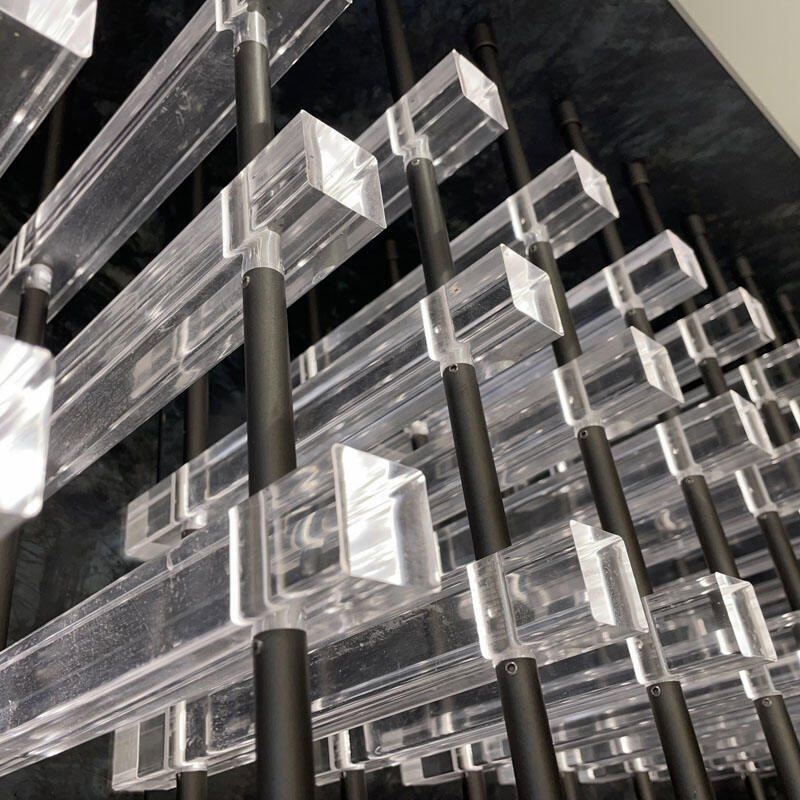

The bottles are supported by clear acrylic cradles connected to a vertical metal-rod grid. A dark decorative back panel provides contrast, while the surrounding frame and curved side sections define the installation as one complete object.
Transparent supports reduce the appearance of conventional shelving and emphasize bottle labels and silhouettes.
Vertical rods organize the rows and columns while creating a precise architectural rhythm.
The installation appears transparent and restrained in daylight, then becomes a luminous display after dark.
Product Video
The video provides a closer view of the wall-mounted structure, row spacing, acrylic light transmission and overall relationship with the interior.

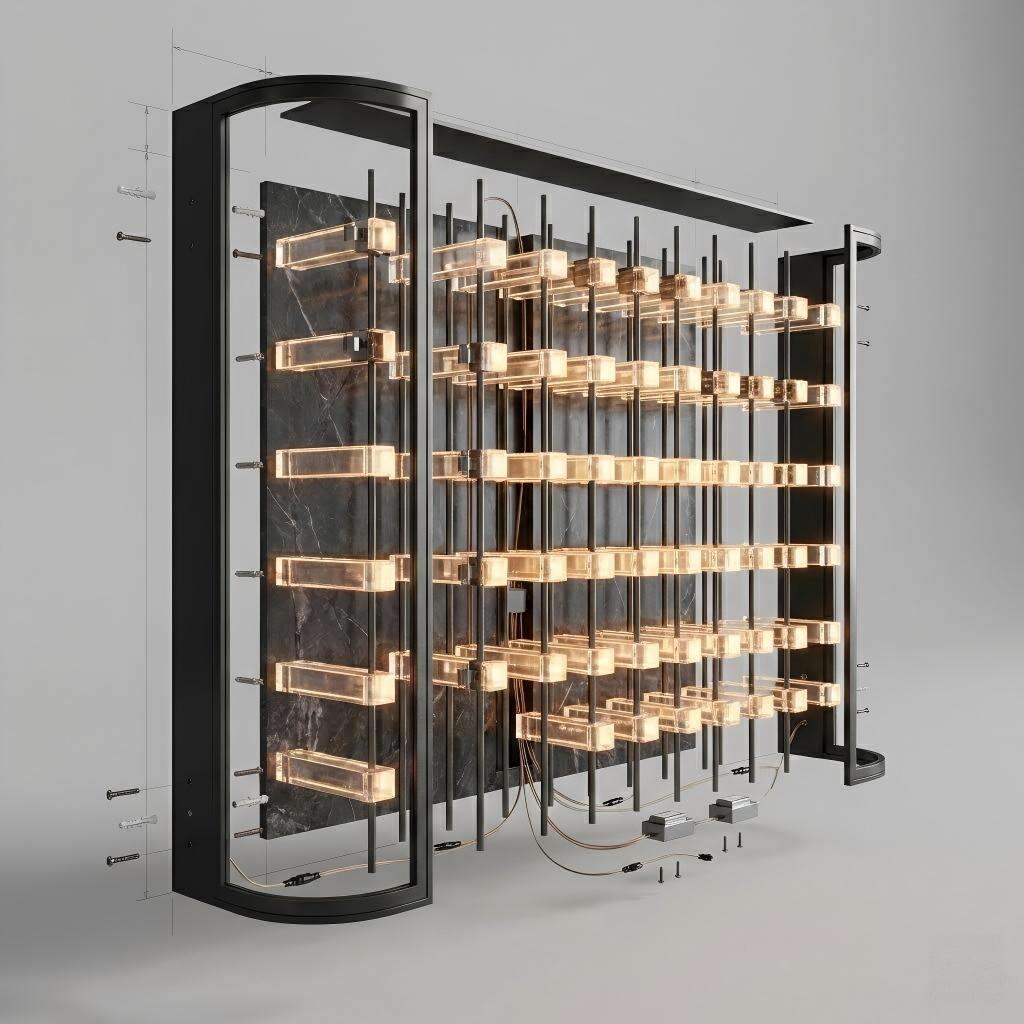

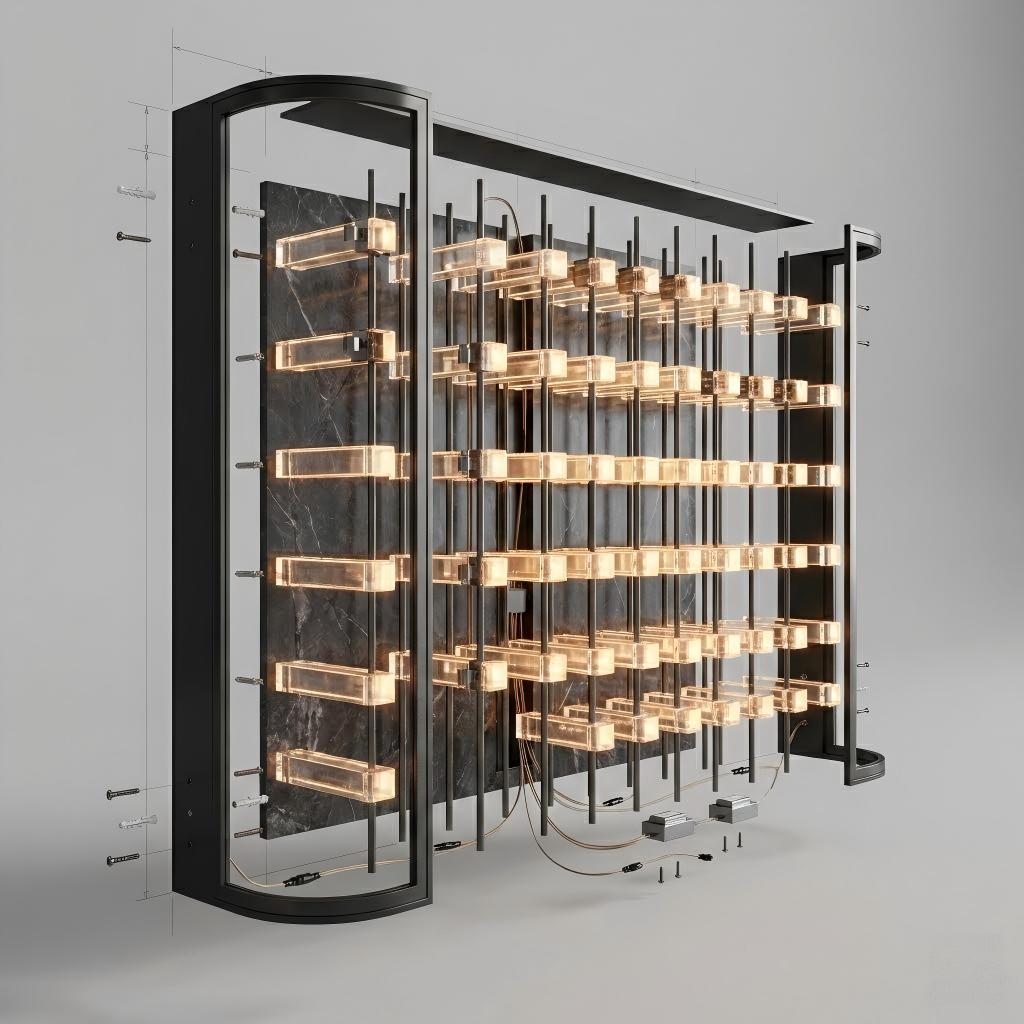

System Architecture
The system should be designed as one integrated assembly rather than treating the acrylic supports, frame and lighting as separate decorative parts.
Defines the overall boundary and supports the curved side or enclosure treatment.
Create the structural grid and determine the bottle columns.
Transparent horizontal cradles hold each bottle and transmit the LED light.
Stone-look, dark or project-selected surfaces provide contrast behind the collection.
Lighting and power components are coordinated with the frame, acrylic supports and installation access.
Component Relationship
The acrylic cradles, support rods, frame, backing panel, electrical route and wall connection must be developed together. This is particularly important because the finished product is visually transparent and leaves little space to hide inconsistent details.
Do not publish universal load capacity, driver position, acrylic thickness or fixing instructions unless verified for the final project structure.
Daylight & Integrated Lighting

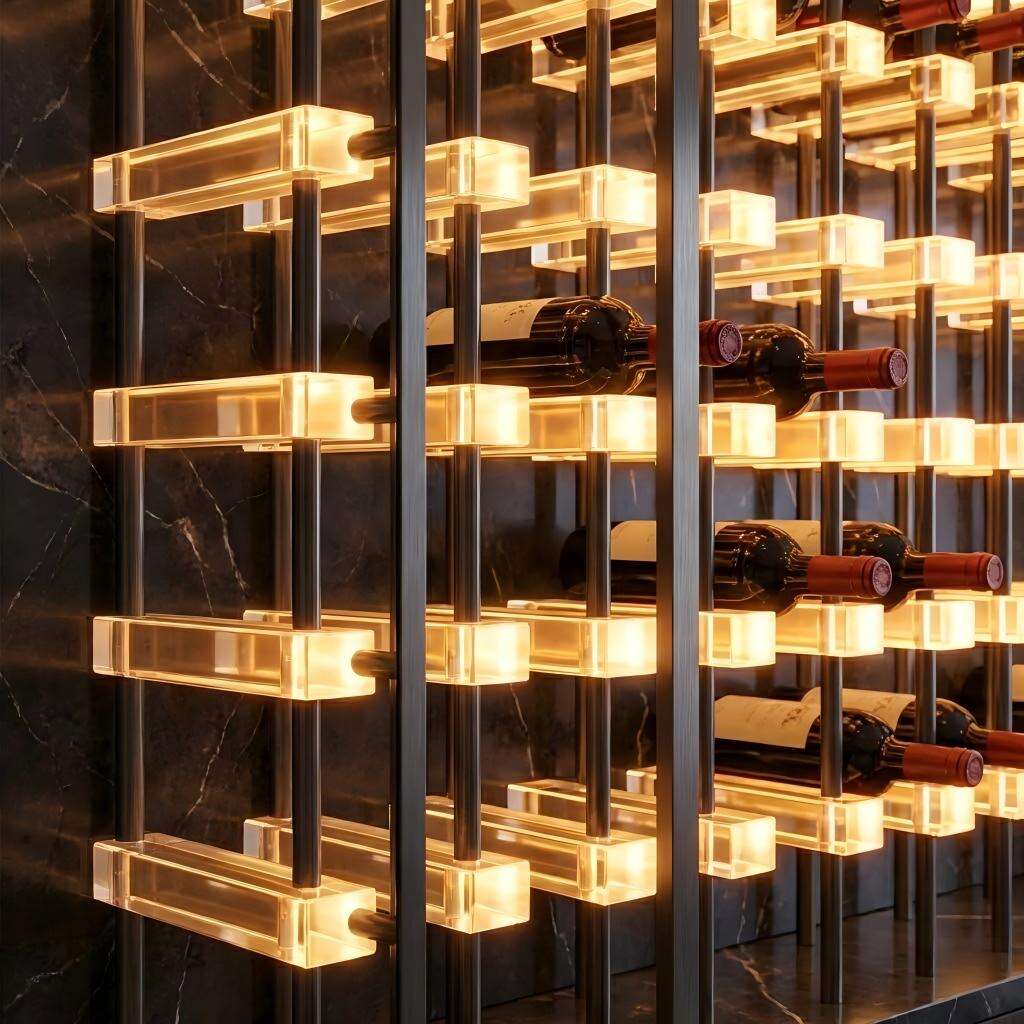

The acrylic support grid remains transparent and reflective during the day, then distributes warm light around each bottle when illuminated.
Dimming, switching, color temperature and smart-home integration should only be stated after the final electrical control specification is confirmed.

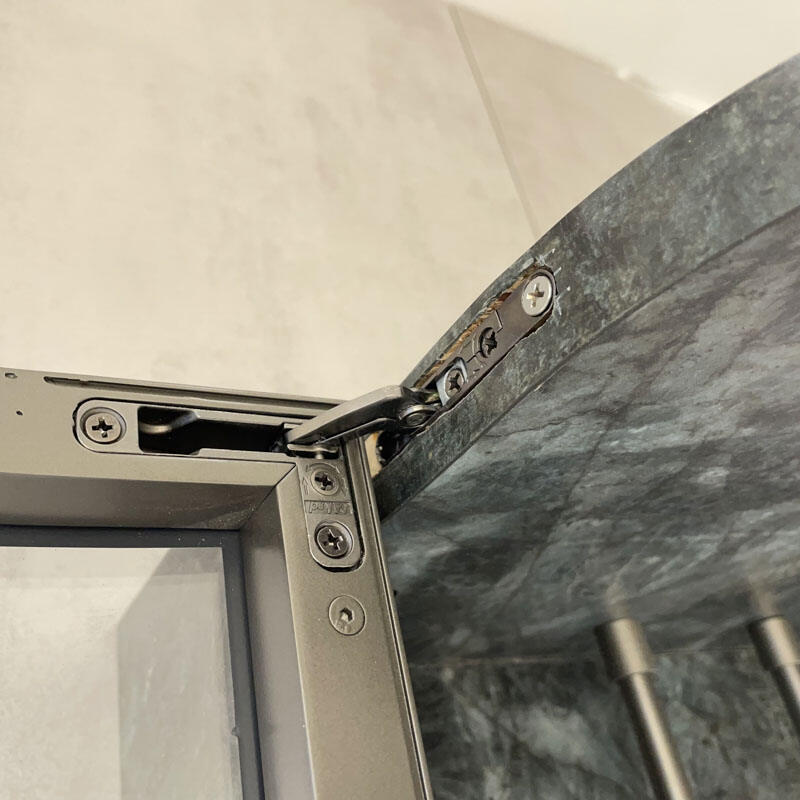

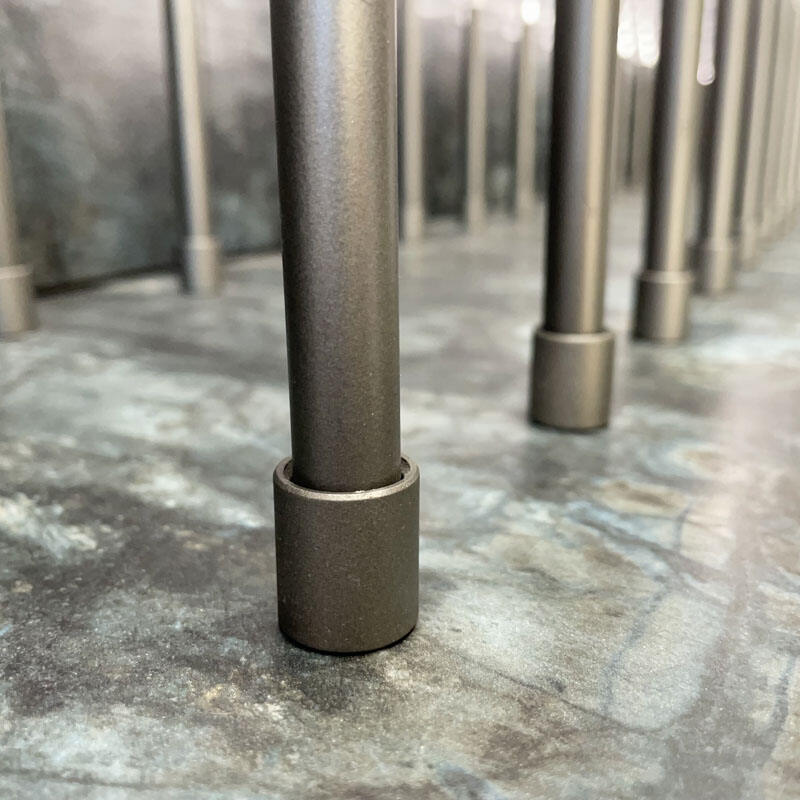

Real Product Details
These details help buyers understand the clear acrylic machining, metal rod finish and surrounding hardware more accurately.
Made-to-Measure Planning
The number of columns, number of rows, slot spacing, side-frame form, back-panel size and electrical route should be confirmed from the project elevation rather than copied from a standard catalogue size.
Provide finished wall width, height, nearby furniture and obstruction information.
Capacity is calculated from the final row and column arrangement—not one universal number.
Confirm typical bottle diameter, length and whether mixed bottle formats will be displayed.
Confirm switch, dimming, color temperature and any integration requirements before production.

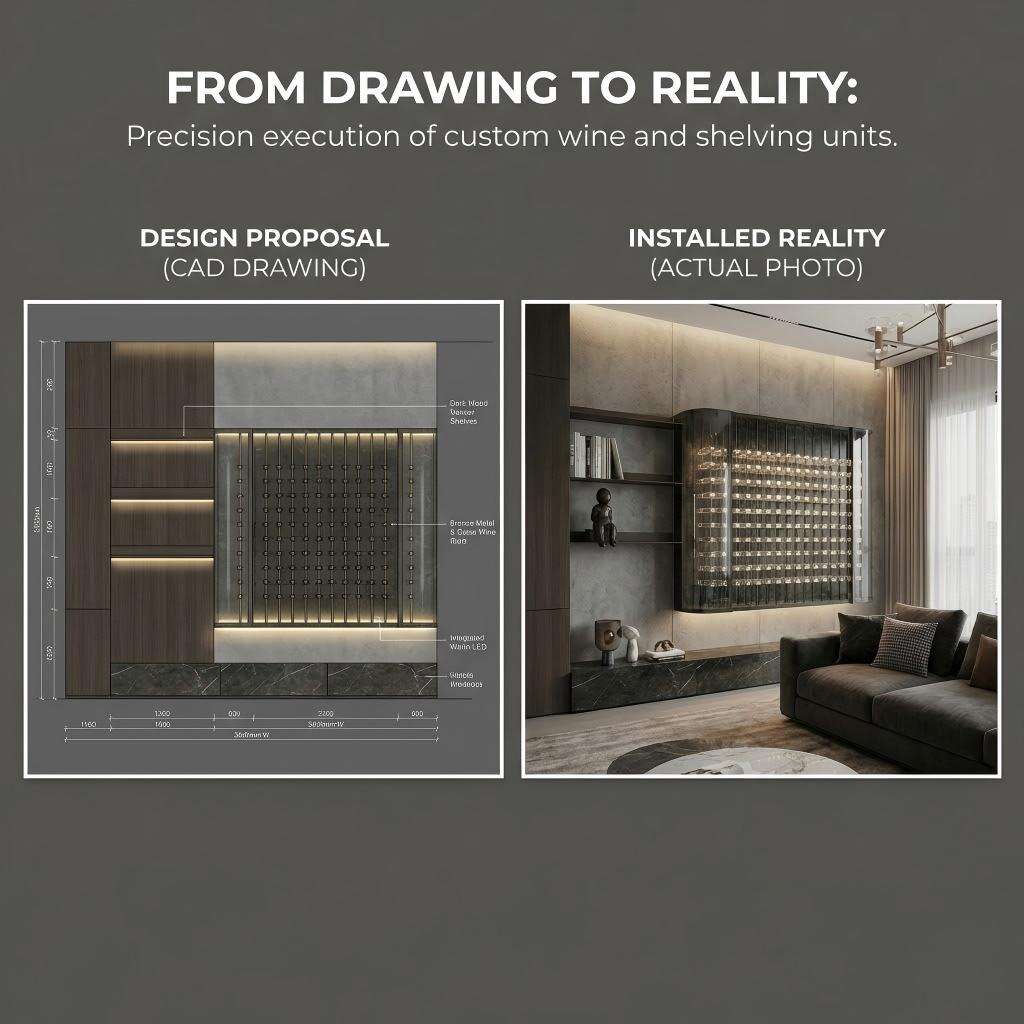

From Proposal to Installed Interior
Surrounding veneers, shelving, stone surfaces, ambient lighting and seating areas should be considered together with the wine rack.
Product Specifications

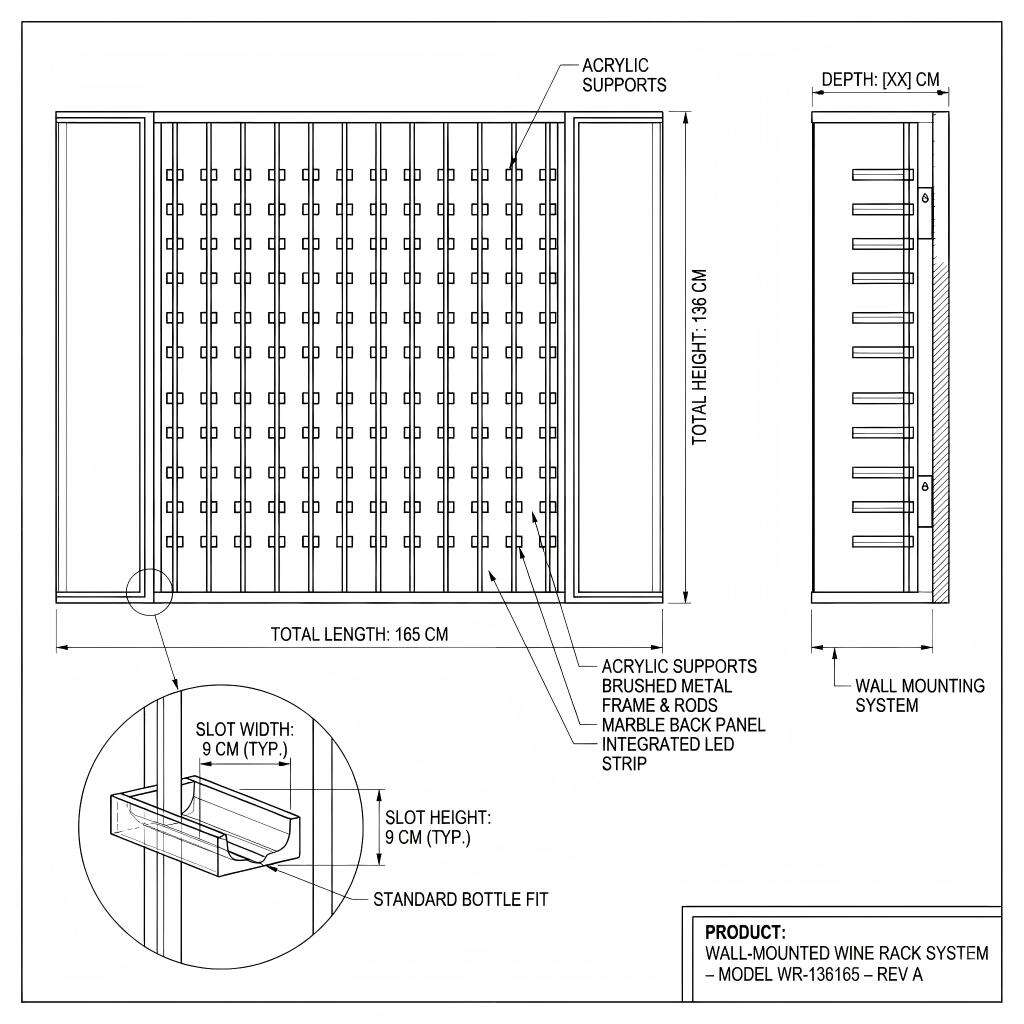

Final dimensions, bottle capacity, support spacing, lighting, back-panel finish and wall connections are confirmed through approved drawings.
Important: this is a display and storage furniture system. It does not inherently provide refrigeration, humidity control or a climate-controlled wine-cellar environment.
Custom Project Process
Our team can work with architectural drawings, wall elevations, reference images or basic room measurements.
Share width, height, wall condition, surrounding furniture, photographs and references.
Provide approximate bottle quantity and typical bottle dimensions or formats.
Choose frame finish, acrylic appearance, back panel and desired lighting atmosphere.
Review rows, columns, dimensions, wall fixing, electrical route and final elevation.
Manufacturing, lighting test, quality inspection and export-oriented protective packing.
Send your wall dimensions, approximate bottle quantity, preferred frame and back-panel finish, and lighting-control requirements. Our team will arrange the rows and columns and prepare a custom proposal.
