Side-Hinge Hidden-Edge Glass Kitchen Door with Mid-Rail
Compare mid-rail pull tab and light glass insert appearance.
View this door design
A side-hinged hidden-edge cabinet door with a central mid-rail, ribbed back-panel appearance and compact pull tab for displays, wardrobes and collection storage.
ESM / SELECTED DOOR
This hidden-edge frame with central mid-rail pairs a vertically ribbed panel appearance with a compact pull tab at the rail. The design is intended for display cabinets and fitted storage.
ESM supplies custom door units for cabinet manufacturers, furniture brands and project buyers. Start with the pictured configuration, then specify the required sizes, finish, insert and cabinet fit.
Get a Quote for This Door

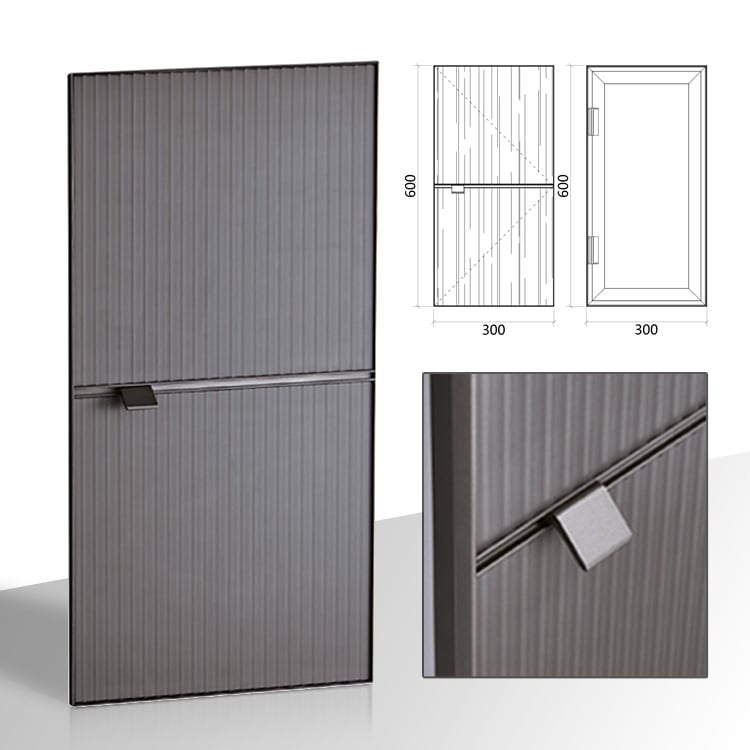

Door sample for this model
| Frame reference | Hidden-edge frame with central mid-rail |
|---|---|
| Shown insert | Vertically ribbed panel appearance |
| Grip / handle | Compact pull tab at the rail |
| Application | display cabinets and fitted storage |
| Order dimensions | Finished door width × height and quantity for each size; confirm against the selected system |
| Supply scope | Door units; insert, hardware and packing itemized in the quotation |

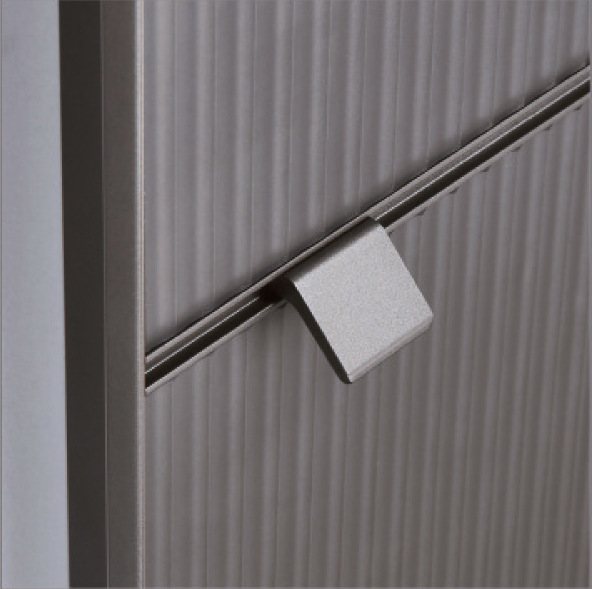

01 / DETAIL
Review the visible border and its finish together with the full door sample.
Model-specific catalogue detail; final interfaces follow the approved drawing.
Align the horizontal rail with nearby cabinet divisions so the ribbed fronts read as one coordinated display wall.
Catalogue reference for the selected design. Frame-series names do not replace a section drawing; confirm the finish with a physical sample.

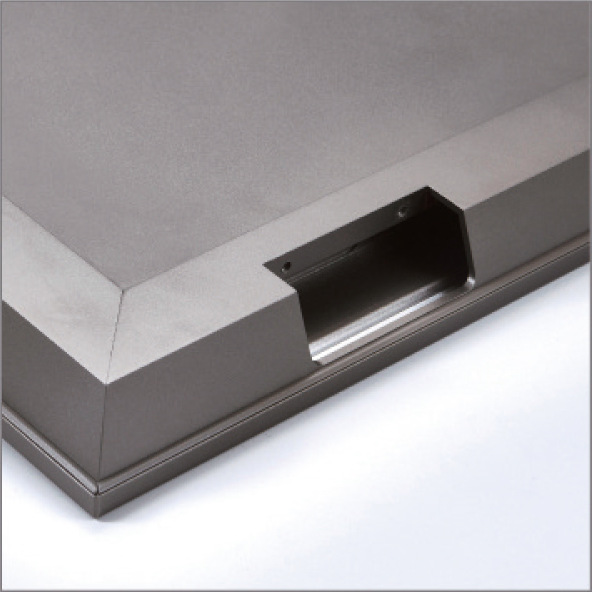

02 / HARDWARE
Door-side mounting detail from this model. Match the specified hardware to this interface.
Plan the hinge-side mounting surface, door handing and overlay or inset arrangement together. Keep fixing positions clear of the selected insert and agree machining before cabinet production.
03 / SELECTION
The illustrated front has a vertically ribbed panel appearance. Confirm the actual panel material, pattern scale, backing and edge treatment with the frame finish. Keep the compact pull tab at the rail aligned across the cabinet elevation.
| Frame and insert | Hidden-edge frame with central mid-rail / Vertically ribbed panel appearance |
|---|---|
| Opening detail | Compact pull tab at the rail |
| Sample review | Compare the actual finish, surface and edge treatment before approving a batch |
04 / SAMPLE FINISH
Inspect the corner line and metallic finish on an actual sample before confirming a production finish.
Review how the selected insert seats in its frame. The final section and assembly details must match the ordered system.
ESM sample photographs, edited for presentation. These samples show other frame sections and are not technical drawings of this model.
05 / PRODUCTION
Catalogue application illustration. Cabinet interiors provide context; this enquiry concerns the door units.
Align the horizontal rail with nearby cabinet divisions so the ribbed fronts read as one coordinated display wall.
List door sizes and quantities by position so handles, insert patterns and neighbouring fronts can be reviewed as one order.
The existing ESM collection video shows aluminum sections, corner finishes and sample displays across the wider range.
Collection video, not a model-specific opening or load test.
Agree the finish sample, door schedule, hardware scope and protective packing before production. The workshop photographs show general ESM door batches; finishes and configurations vary.
06 / QUOTE
Tell us about your display cabinets and fitted storage project and reference this model. Approximate sizes, quantities, destination and contact details are enough to start the conversation. Drawings can follow by email or WhatsApp.
| Design reference | Side-Hinge Hidden-Edge Ribbed Panel Display Cabinet Door |
|---|---|
| Door schedule | Width × height, quantity and opening side for each position |
| Appearance | Vertically ribbed panel appearance; Compact pull tab at the rail; list requested changes |
| Cabinet fit | Mounting surfaces, overlay / inset and clearance requirements |
| Supply and delivery | Included insert and hardware, packing, destination and project timing |
Include the rail height on your elevation and identify any shelf or neighbouring door lines it should follow. Review the requested position with the selected frame and insert.
Send the required finished dimensions and quantities. The frame, insert and hardware must be reviewed together for each size; catalogue sample dimensions are not a maximum-size or load rating.
Ask for the frame finish, insert, hardware, machining and packing to be listed separately where applicable. Sample arrangements, minimum order and production timing are confirmed for the selected configuration.
